EVS 1880 Vac-formed, Seamless Child/Attendant Seat

EVS 1880 Vac-formed, Seamless Child/Attendant Seat

Looking for an ambulance child restraint system?

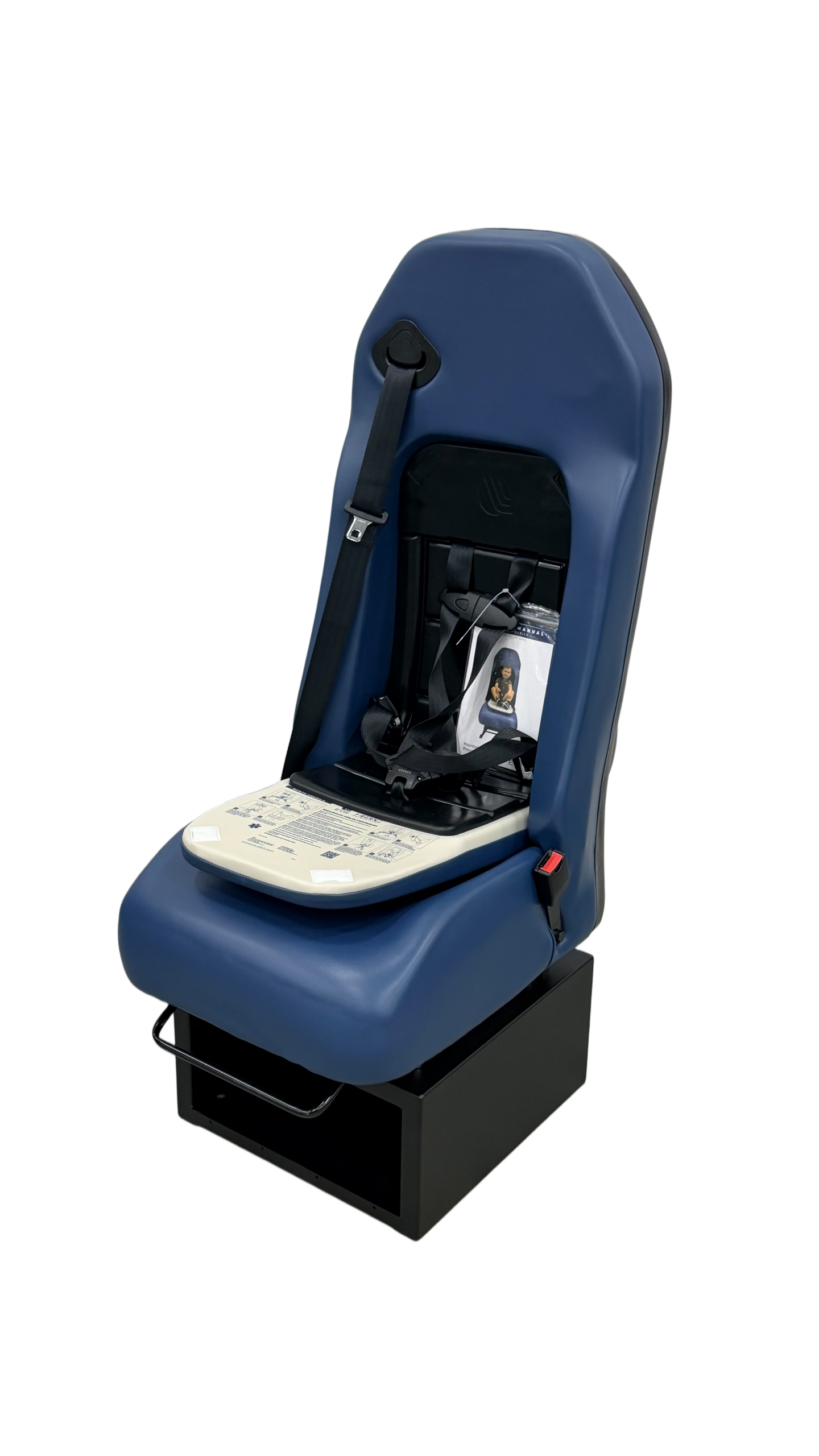

The EVS 1880 is a vac-form, seamless ambulance attendant seat with an integrated child restraint system that allows uninjured children weighing between 20-65 lbs to be transported in a five point safety harness. When it is not needed, the child-insert can be folded into the seat and allow an adult to use the seat as a standard attendant’s seat with a variety of belts including three point, four point, V4, five point, six point, Backpack, IMMI Four Point Single Click with Four Retractors, and PRO4 Single Click with Four Retractors.

Request More Information

Features

  • Five point safety harness with push button release keeps child safe and secure
  • Seamless construction offers quick removal of blood-borne pathogens
  • Ability to transport uninjured children weighing 20-65 lbs.
  • Meets or exceeds all applicable FMVSS and SAE Standards
  • Seamless construction meets all applicable Triple K standards
  • Ergonomically correct seat back provides maximum comfort
  • Streamlined ABS back provides increased durability
  • 18803U meets M1 testing for European standards
  • Available with a variety of bases
  • Available as OEM equipment or aftermarket retrofit for Types I, II, and III vehicles

Dimensions

  • 49.63″ Overall Seat height (on base)
  • 40.13″ Seat height with track
  • 19.25″ Width
  • 26.625″ Seat Depth (10 DEG) (1880)
  • 24.25″ Seat Depth (6 DEG) (1882)

Belting Options

  • Three Point
  • Four Point
  • V4
  • Five Point
  • Six Point
  • IMMI Four Point Single Click with Four Retractors
  • PRO4 Four Point Single Click with Four Retractors
  • Backpack Belting System

Base Options

  • CBPEDR
  • CBPED
  • CB
  • CBWT
  • CBWD
  • CBWDK
  • CBH
  • CBTS
  • SB-2
