Bases

Base Options for Standard Ambulance Seats

SB2

  • Standard height two position swivel base
  • Locks in forward and rearward positions
  • Swivels 360 degrees

SB8

  • Standard height eight position swivel base
  • Locks in eight positions at 45 degree increments
  • Swivels 360 degrees



 SB8S

  • 3.5″ eight position swivel base
  • Locks in eight positions at 45 degree increments
  • Swivels 360 degrees

SB175

  • Pedestal base that swivels 360 degrees and locks in one position
  • Available in two heights
  • 9″ – SB175(9″)
  • 3″ – SB175(3″)

CB

  • Standard height reinforced cabinet base

CBH

  • Tall cabinet base designed for a heater unit

CBWD

  • Reinforced cabinet base with door and latch
  • Also offered with a door, lock, and key (CBWDK)

CBPED

  • Standard height pedestal base
  • Smaller footprint designed to fit in tight spaces
  • Compatible with seats without slide track

CBPEDR

  • Standard height pedestal base
  • Smaller footprint designed to fit in tight spaces
  • Compatible with seats equipped with slide track

CBWT

  • Cabinet base with increased storage area
  • Wide box offers more flexibility for various drill zones
  • It is compatible with our attendant or integrated child seats with standard, stationary bottoms

CBTS

  • Shorter version of our CBT base designed for Type II’s, but compatible with all types of ambulances
  • Designed to be installed behind the bulkhead and allow an O2 tank to be secured beneath it
  • Compatible with our attendant or integrated child seats with standard, stationary bottoms

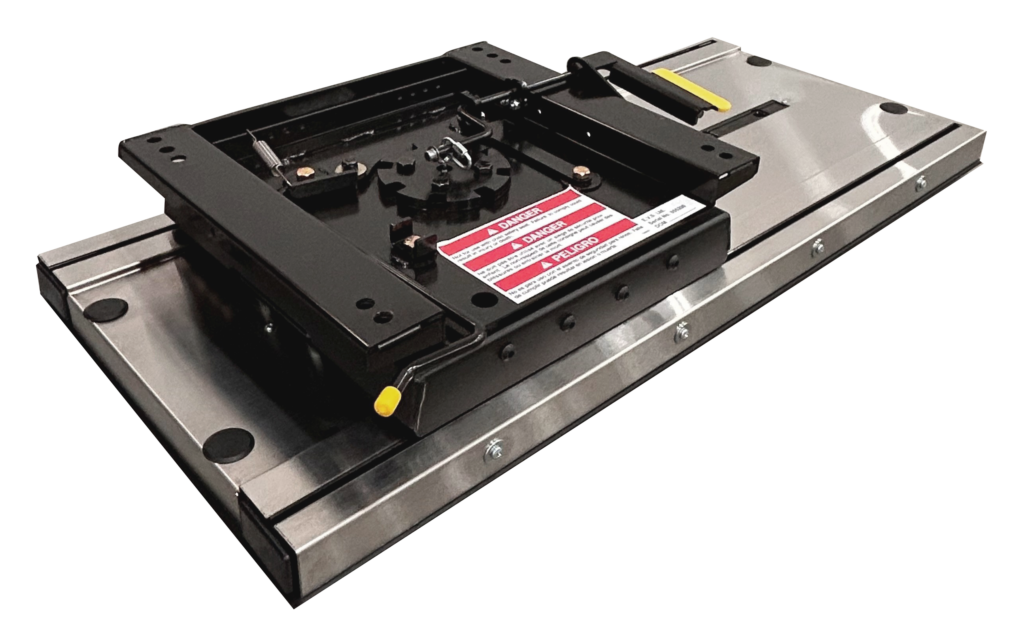

188 Mobility 1 Tracking System

  • Eight position swivel base that locks in 45 degree increments and slides along the tracking system (SB188TRS)
  • Tracking system offered in 36″ (TR36KIT) and 48″ (TR48KIT) lengths

Base Options for Flip-Up Seats

These bases can be mounted center, offset left, or offset right on flip-up seats.

CBT

  • Long cabinet base designed for Type II’s
  • Designed to be installed behind the bulkhead and allow an O2 tank to be secured beneath it
  • Compatible with rearward-facing flip up seats at the head of the cot

CBPED1760/1860

  • Standard height pedestal base for flip seats
  • Can be mounted center, offset left, or offset right

SB186-8

  • Standard height eight position swivel base that locks in 45 degree increments
  • Can be mounted center (SB186-8C), offset left (SB186-8L), or offset right (SB186-8R)

SB186-8S

  • Shortened eight position swivel base that locks in 45 degree increments
  • Can be mounted center (SB186-8SC), offset left (SB186-8SL), or offset right (SB186-8SR)

SB186-8WWM

  • 3.5″ eight position swivel base that locks in 45 degree increments
  • Designed to mount to wheel well areas
  • Can be mounted center (SB186-8WWMC), offset left (SB186-8WWML), or offset right (SB186-8WWMR)

TRWWB3

Transit wheel well base compatible with the three following swivel bases. Only compatible with the 2169 seat model:
  • SB186-8WWMTC – eight position swivel base
  • SB186-8WWMTR – eight position swivel base
  • SB186-8WWMTL – eight position swivel base

186 Mobility 1 Tracking System

  • Eight position swivel base that locks in 45 degree increments
  • Swivel base can be mounted center (SB186CMTRS) or offset left or right (SB186OMTRS)
  • Swivel base compatible with the 186 Mobility One Tracking System
  • 186 Mobility One Tracking System available in 36″ (TR36KIT186) and 48″ (TR48KIT186) lengths

Need help selecting the right base option for your ambulance configuration and seat? Let us help you! The options are endless and our experts will walk you through selecting the appropriate base quickly and knowledgeably.
